Electronics

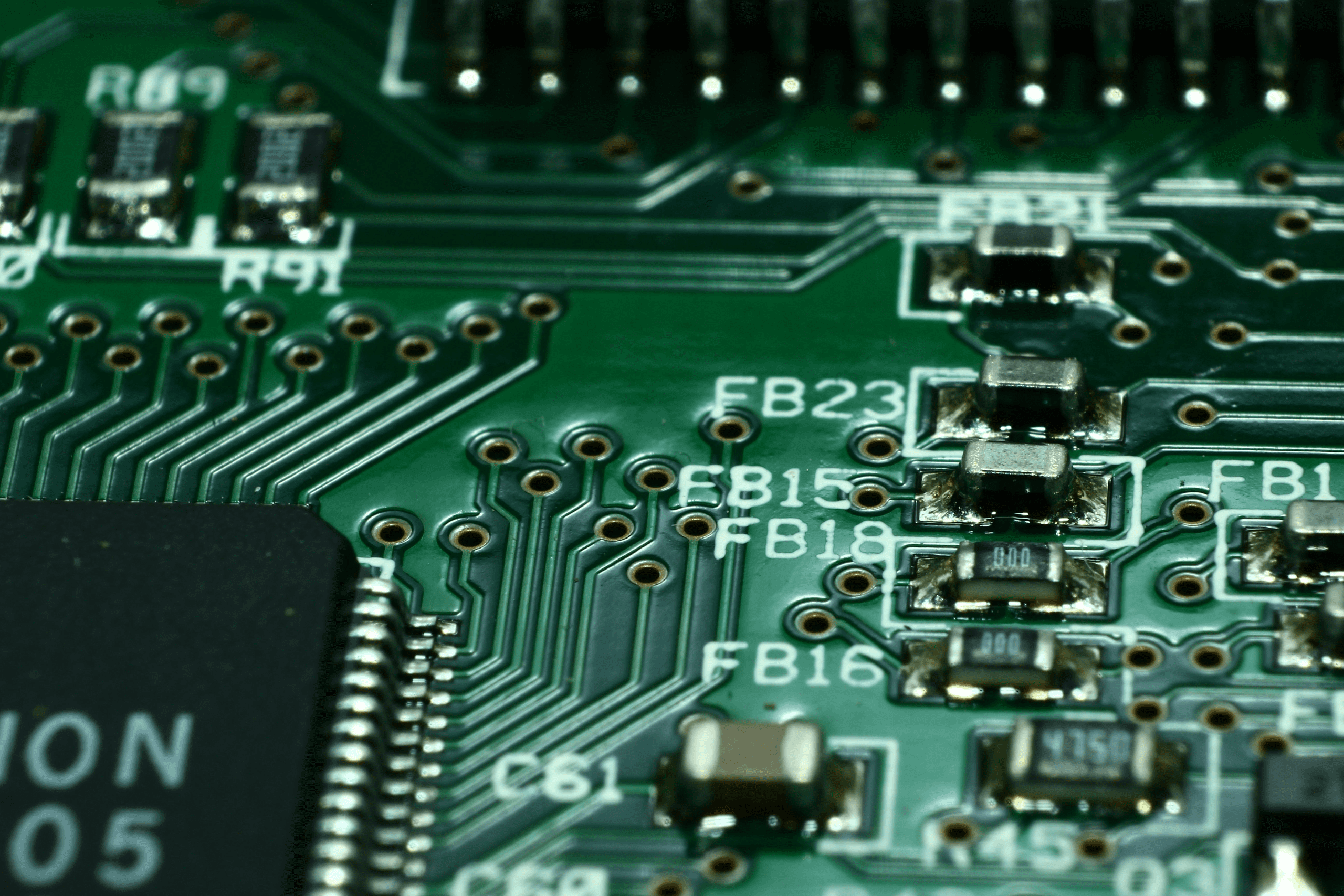

1.PCB conformal coating

Under realistic conditions, such as chemical, vibration, high dust, salt spray, humidity and high temperature, the circuit board may produce corrosion, softening, deformation, mildew and other problems, resulting in circuit board circuit failure.

Conformal coating is a specially formulated coating that is applied to the surface of the circuit board to form a protective film with three protections (three protections refer to moisture resistance, salt spray resistance and mildew resistance). It is used to protect the circuit board and its related equipment from environmental erosion, thereby improving the reliability of the circuit board, increasing its safety factor and ensuring its service life. Conformal coating has good high and low temperature resistance; after curing, it forms a transparent protective film with excellent insulation, moisture resistance, leakage resistance, shock resistance, dust resistance, corrosion resistance, aging resistance and corona resistance. In the presence of chemical substances (such as fuel, coolant, etc.), vibration, moisture, salt spray, humidity and high temperature, the circuit board without conformal coating may be corroded, mold grows and short circuits occur, resulting in circuit failure. The use of conformal coating can protect the circuit from damage.

Functions of conformal coating:

1. Prevent leakage or short circuit of circuit boards caused by environmental moisture and other pollution sources, and prevent discharge phenomena such as arc and corona;
2. Improve the fatigue load life of solder joints of leadless devices, provide a certain degree of fixation for small components on circuit boards, and avoid the influence of vibration or mechanical shock;
3. Prevent corrosion and mold.

Features of conformal coating

1. Single component, low viscosity resin, suitable for brushing, spraying, dipping, pouring and other processes, with good adhesion.
2. Good resistance to high and low temperatures; after curing, it forms a transparent protective film with insulation, moisture-proof, leakage-proof, shock-proof, dust-proof, corrosion-proof, salt spray-proof, mildew-proof, aging-proof, and corona-resistant properties.

Application of conformal coating

Conformal coating is mainly used in daily applications for the protection of integrated circuits in common household electronic products such as color TVs, refrigerators, washing machines, microwave ovens, air conditioners, telephones, electric water heaters, etc. It has strong adhesion, waterproof, lightning protection, rust prevention, and corrosion resistance, which can greatly improve the performance stability of household electrical products.

2.AF electronic protective agent

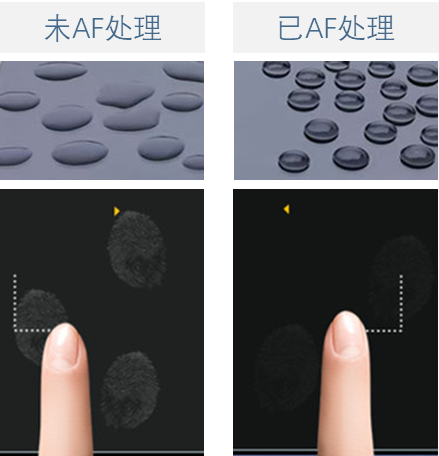

In daily life, when we touch the surface of an electronic screen coated with AF electronic protective agent, the grease and stains on our fingers are difficult to adhere to, and it can be cleaned by gently wiping, effectively avoiding the residual fingerprints that affect the appearance. At the same time, it can also resist the invasion of external dust and stains and keep the surface of the object clean. Moreover, the spray liquid will not affect the light transmittance of the object, but can increase the light transmittance to a certain extent, making the display clearer. Compared with ordinary coatings, ordinary coatings may only have a single protective function, such as scratch resistance or waterproofing, while AF electronic protective agents are multifunctional aggregates that can provide more comprehensive and better protection for objects.

AF electronic protective agent is essentially a fluorine-containing polymer coating. This special chemical substance, with its unique molecular structure, gives the surface of the object excellent performance. Its core functions are significant, with anti-fingerprint, anti-fouling and anti-transmission properties.

AF electronic protective agent has rapidly become popular in the field of consumer electronics, not only used in mobile phones and tablet screens, but also extended to devices such as smart watch mirrors. In the field of precision coatings, AF electronic protective agent has an irreplaceable position. Its multifunctional characteristics meet the high requirements of modern precision equipment for surface protection, whether it is anti-fingerprint, anti-fouling or anti-reflection, it is difficult for other coatings to achieve. With the continuous advancement of science and technology, the application prospects of AF electronic protective agent will be broader, providing strong support for the development of various industries.

Technical principles and performance indicators

The main component of AF electronic protective agent is perfluoropolyether. When AF electronic protective agent is evaporated onto the surface of an object, the molecules will undergo a microscopic process of self-assembly into a film. In this process, the hydrophobic groups of the perfluoropolyether molecules will be oriented on the surface of the coating to form a dense hydrophobic layer. This oriented arrangement makes the coating surface have good hydrophobicity and anti-fouling properties, which can effectively prevent the adhesion of fingerprints and stains.
